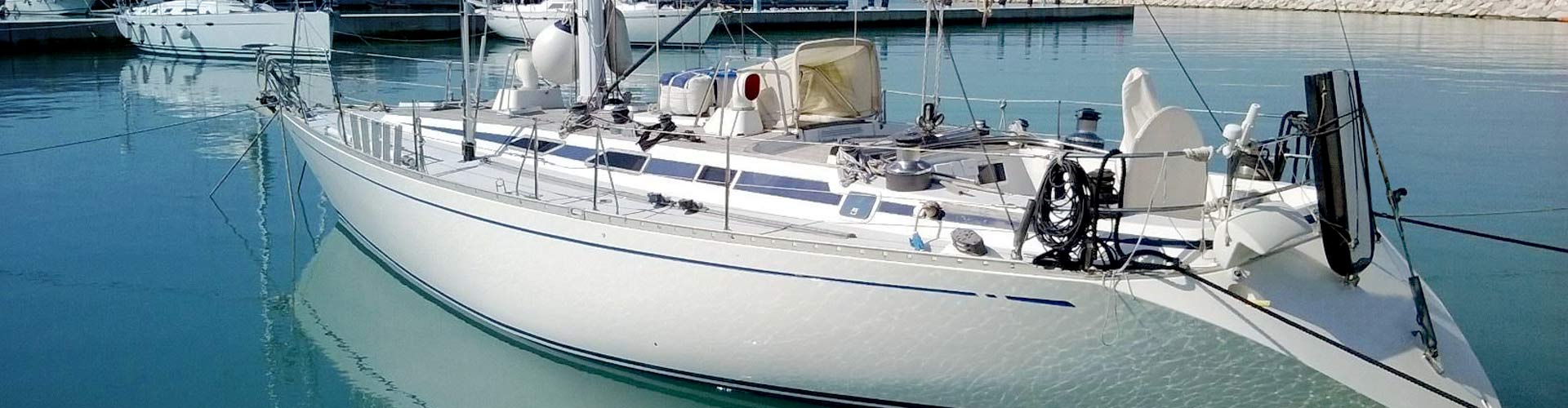

40 to 45 feet, less than 12 tons monohull sailboats
Ideal to cruise with the family, it has all kinds of comfort on board, electrical self sufficiency is an important point if you do not want to stop every evening in crowded ports in summer.
We recommend the following solutions for the electric motors and the autonomous production of green energy on your boat :
ELECTRIC OR HYBRID MOTOR FOR SAILBOATS
OCEANVOLT Sail Drive 15 kW or SERVOPROP electric motor
OCEANVOLT offers 2 types of sail drive from 10 to 15 kW. The standard SD model and SERVOPROP. The latter is equipped with a variable-pitch propeller that improves propulsion power by 30% and the regeneration by 300%.
From 39,000 euros HT (SD) and 46,000 euros HT (SERVOPROP) with a 19 kWh battery pack and chargers.
Not including installation and transport.
Diagram of electric motor system configuration on a sailboat :
- Sail drive motor
- Motor controller
- Control lever
- Control screen
- 19 KWh battery pack
- Power bar
- Optional :
7a. AC or DC generator
7b. Solar panels
Power: 10 or 15 kW
HP equivalent *: 20- 30 CV HP
Revolutions per minute (propeller): 1140
Weight (Kg): 65

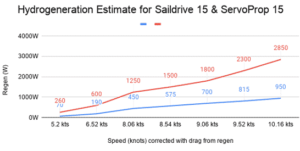

Hydro generation: yes
Estimated autonomy with (19 kWh NMC) = 25 miles
*Link to detailed explanation
Technological advances in terms of solar panels on boats make them almost essential nowadays, whether it is to maintain the charge of the batteries during absences, without having to moor the boat to the dock, or to spread the ever-increasing consumption on board and supply power to the batteries of the electric motor propulsion.
For a boat that is less than 40 to 45 feet, the installation of fixed panels on the davit is ideal, it can be combined with flexible solar panels to be placed on the roof or the bimini.
- 25% high efficiency cells and Rear Contact Technology
- Anti-slip coating trampling resistant
- Optimized coating for shaded areas
- 5-year warranty
Learn more :
How to choose your solar panels ?
GENERATOR FOR A SAILBOAT
Take advantage of the space saved with the installation of an electric motor to give yourself the comfort of a generator.
We have selected the sets from the brand Fischer Panda because they are compact, silent and they can be easily integrated into a 48 volts electric motorization system.
The set could therefore supply the batteries and the motor. We recommend the AGT DC with a power of 3 to 25 KW.
- Almost unlimited autonomy
- Comfortable electrical equipment
- Low noise thanks to its cocoon
- Low Weight
(Generator + electric motor + batteries) equivalent to a Diesel engine.
The electric motor is clean, silent, powerful and what is even better: self sufficient. It is a dream to use it in difficult situations, because you only have to push the handle and you are ready to go !
Practical Boat Owner – Electric Nautor Swan 43
